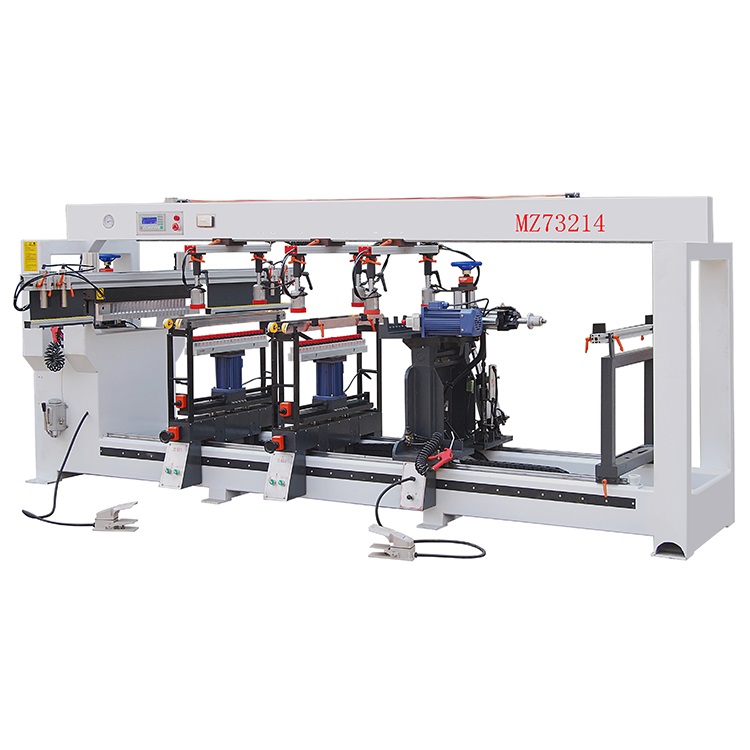

Three-drilling machine is a type of multi-drilling machine and applying to wardrobe, cupboard, office furniture etc. It can make dozens of holes once. This drilling machine can work at 0 to 90 degree. It can make hole on surface and side of boards at same time. This machine has a strong construction. The machine body is durable and doesn’t deform after heat treatment. This machine greatly improves the work efficiency. This type of drilling machine is a good choice for a large furniture factory. It can  reduce working cost.

Model	MJ73223
Max hole diameter	35mm(single bit)
Max drilling depth	60mm
Max processing hole distance	140-1700mm
Spindle speed	2800rpm
Total number of shaft	21*3
Air pressure	0.6-0.8Mpa
Total power motor	4.5kw
Overall size	3000*2500*1600mm
Weight	1000kg

● The multi-drilling machine adopts the quality touch screen and PLC industrial control system, which has strong functions and low failure rate. ● The multi-boring machine has a large drilling range, and all the drill bits adopt quick connectors, which is convenient and fast. ● The drilling depth and drilling distance of the row drill are all controlled by photoelectric induction switches, so the positioning is fast and accurate. ● This multi- drilling machine adopts imported original famous brand drill row, linear guide rail and slide block, which are durable. ●The parts of the boring machine are made of high-quality steel, which will never deform after high-temperature annealing (elimination of internal stress). ●The three–line boring machine is equipped with a size digital calculator to improve work efficiency.

Model	MJ73224
Max hole diameter	35mm(single bit)
Max drilling depth	60mm
Max processing hole distance	140-2500mm
Spindle speed	2800rpm
Total number of shaft	11*4+21*2
Air pressure	0.6-0.8Mpa
Total power motor	9kw
Overall size	4000*2500*1600mm
Weight	1500kg



Model	MJ73224
Max hole diameter	35mm(single bit)
Max drilling depth	60mm
Max processing hole distance	140-3500mm
Spindle speed	2800rpm
Total number of shaft	21*6
Air pressure	0.6-0.8Mpa
Total power motor	9kw
Overall size	4500*2500*1600mm
Weight	1800kg
